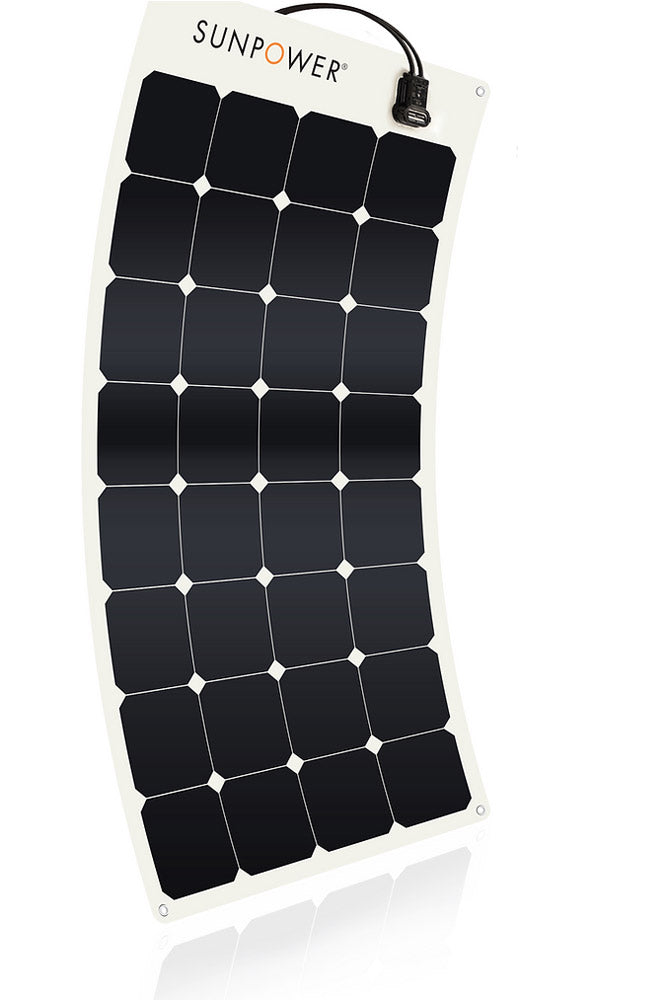

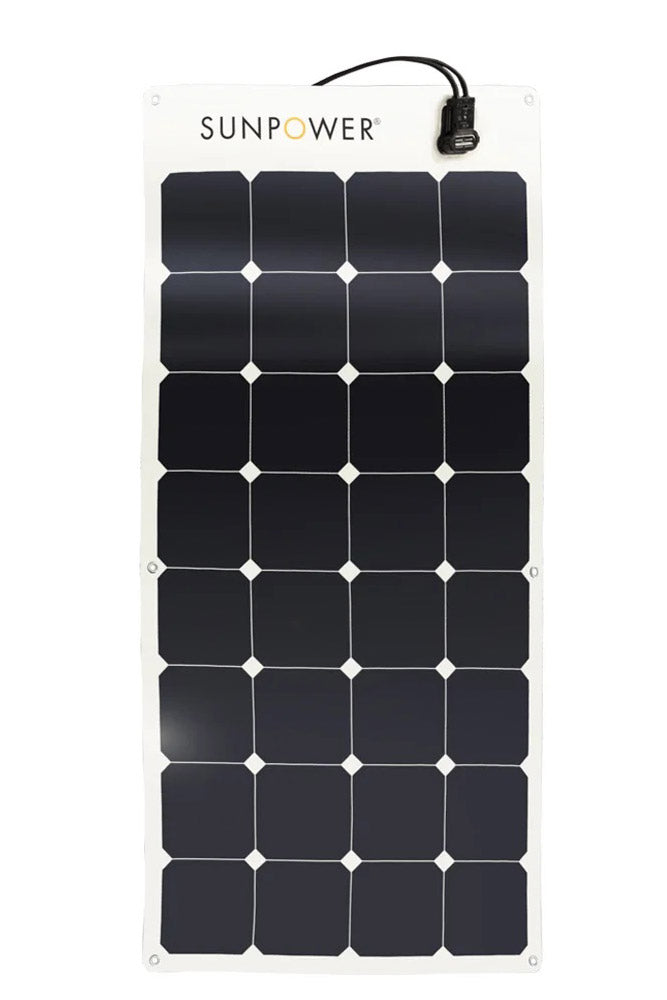

SunPower® 100W E-flex Flexible solar panel
SunPower® 100W E-flex Flexible solar panel - spec sheet
100w flexible solar panel
SunPower® flexible panels deliver the highest power output in their product class. SunPower® panels are constructed with top-grade, lightweight polymer materials, allowing for easy transport, installation and panel flexing up to 30 degrees.
SunPower® 100W E-flex solar panel
 |
SunPower SPR-E-Flex-100 Datasheet |
-
Dimensions: 45.9"(L) x 21.9"(W) x 0.1"(W) (0.8" including J-Box)
-
Weight: 4.4lbs - Lightweight, Portable & Easy to Stow
-
Rated Voltage (Vmpp) 17.1V | Rated Current (Impp) 5.9A - Powerful
-

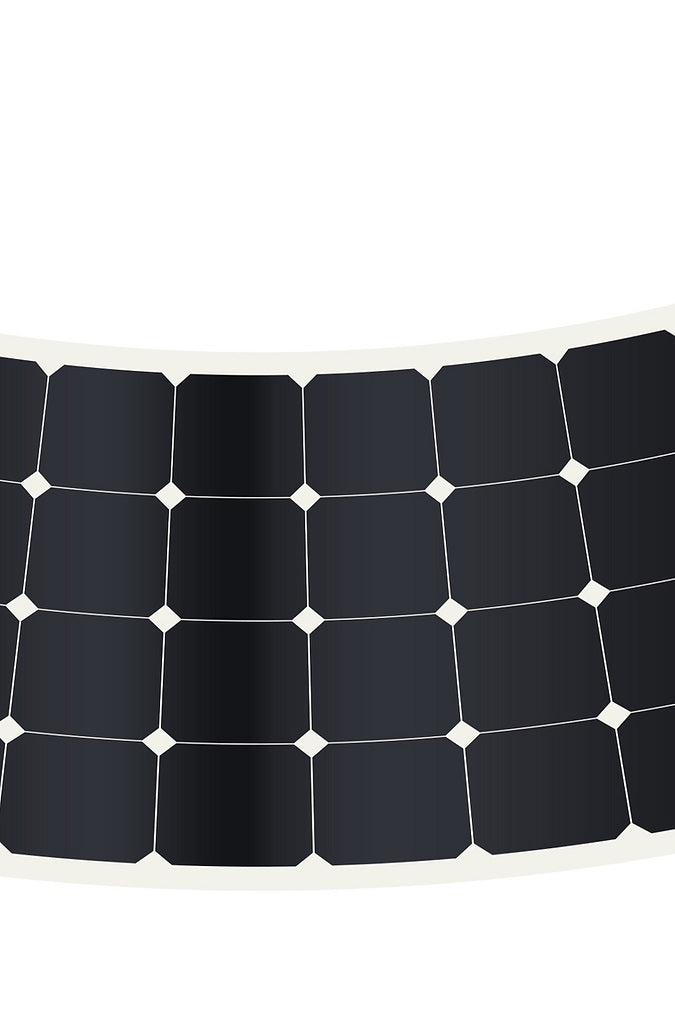

Flexible up to 30 degrees - Suitable for Irregular Surfaces
-
32 high efficiency (23%) monocrystalline Maxeon™ Gen II prime solar cells - More Power in Less Space
-
Premium cosmetic quality
-
Junction box with by-pass diode has IP67 protection- Robust Design, Water & Dust Proof!
-
17.7" long cables (12AWG) with PV4-S Connectors (MC4 compatible) - Reliable & Safe with IP68 Protection
-
6 x 316 Stainless steel grommets (5/16" I.D.) - Diverse Installation Options
-
5-Year power & 2-Year product warranty (no salt water exclusion) - Backed by SunPower
-
Solar cells made in the Philippines.
-
Solar panel assembled in France.
-
Individually packaged & protected for shipping. Includes safety & installation guide
-
Manufacturing Certificates: ISO9001, ROHS
-
Spec sheet (pdf)
-
Marine flyer (pdf)
-
Installation guide (pdf) Rev F
